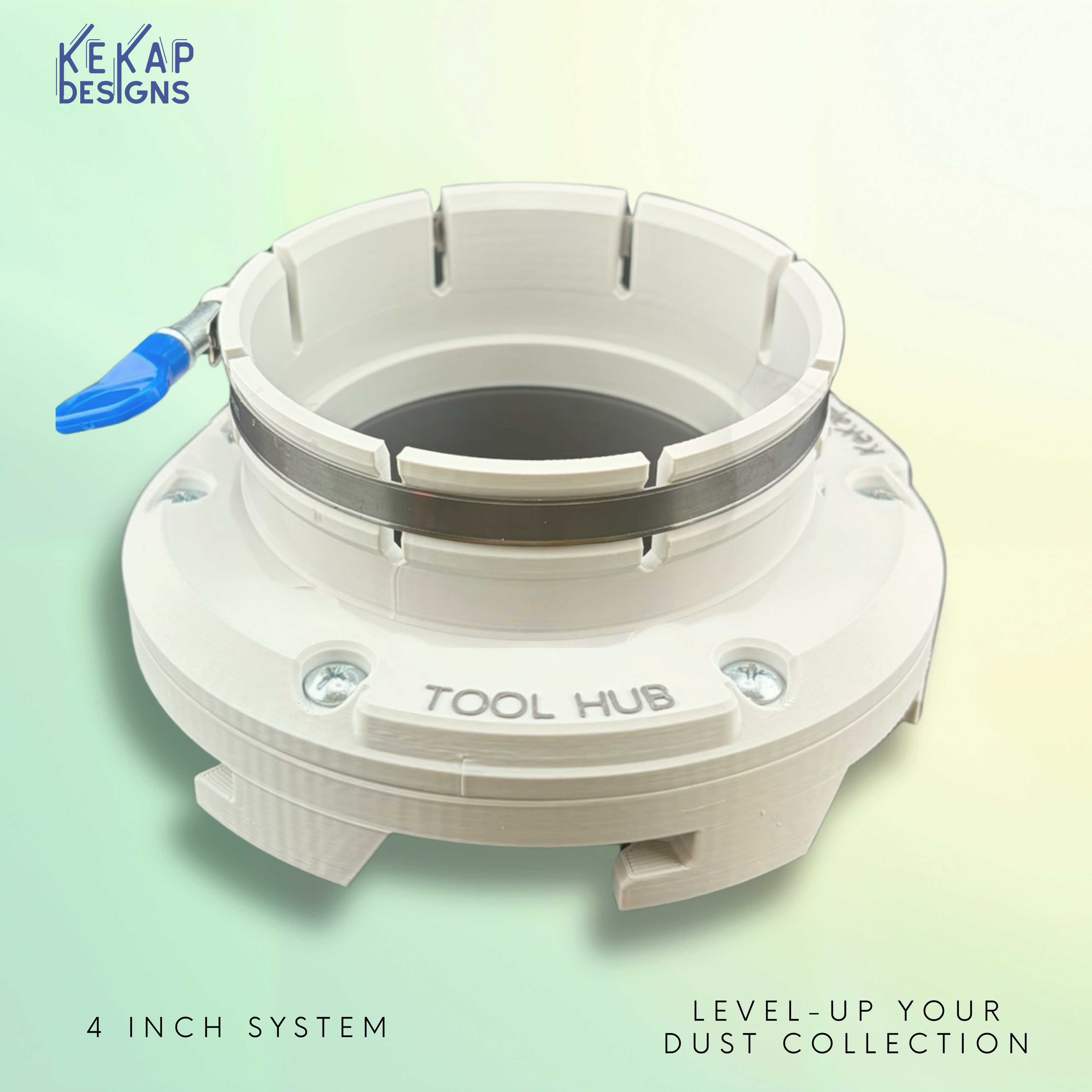

Simplify your shop dust collection system with these modular quick-lock connectors, designed to fit table saws, planers, band saws, jointers, etc, for fast tool changes. Patent pending.
⚠️ Note: A functional connection requires two connectors. This listing is for a single connector only.
Developed using my background in mechanical engineering and woodworking, this system focuses on fast tool changes, strong retention, and long-term flexibility—without over-complication.
- Design Advantages -
• Magnetic Quick-Lock Connection – Fully embedded magnets actively pull the locking lugs together with a satisfying “CLUNK,” creating a strong, repeatable connection with superior retention compared to magnetic-only connectors.
• No Male / Female Ends – There are no dedicated “male” or “female” connectors. The only difference between connectors is the internal seal plate. Every connector includes both seal options, allowing you to configure it based on your setup and purchase only according to hose or tool size.
• Modular & Future-Proof – Swap tools, reconfigure your system, or expand later without replacing everything.
- Retention Styles -
There are two retention options available: 'Magnetic only' or 'Magnetic + Lock Pin'.
All connectors are already held securely by the embedded magnets. The Lock Pin is optional, but adds an additional mechanical lock for maximum security in situations where vibration or hose movement is a concern.
Recommended Setup:
• Magnetic + Lock Pin for flex hose connections
• Magnetic Only for tool ports
All connectors share the same locking geometry, allowing flex hoses to mechanically lock at every connection point while keeping tool changes fast and simple.
All connectors will be pre-assembled using tool-side seal, with the exception of the Flex Hose, which will come pre-assembled with the vac-side seal. Connectors can easily be reconfigured with seals depending on user need. Hose clamps provided for applicable adapter types.
- Materials & Manufacturing -
• 3D printed using PETG
• Designed and tested in a real working shop
• Made to order
• Minor surface texture may be visible due to the 3D printing process (does not affect fit or performance)
- Warranty & Part Replacement -
If you damage a component or need to replace a single part without purchasing a full connector assembly, just reach out! I offer free replacement for 1 year, including normal wear and tear.
I stand behind the design and want these to last in real shops.
As with everything I make, feel free to reach out with any questions—I’m always happy to help.
